1.2Ghz 2500mW Mini FPV Transmitter and Receiver Wireless Image Sender 8 Channels

Name: 12Ghz 2500mW Mini FPV Transmitter and Receiver Wireless Image Sender 8 Channels
Brand: Ding Shen
Price: 1 USD

Wholesale 1.2Ghz 2500mW Mini FPV Transmitter and Receiver Wireless Image Sender 8 Channels from china suppliers

Brand Name : Ding Shen

Model Number : DS-A25

Place of Origin : Guangdong, China

MOQ : 1 Set

Price : Negotiation

Payment Terms : T/T

Supply Ability : 1000PCS per month

Delivery Time : 3-7 days

Packaging Details : export standard packing

Power : DC 12V

RF power : 2500mW

Weight : 104g

Frequency : 1200Mhz/1300Mhz

Channel : 8 Channels

Current : 700mA

Contact Now

1.2Ghz 2500mW Mini FPV Transmitter and Receiver Wireless Image Sender 8 Channels

1.2Ghz 2500mW Mini FPV Transmitter and Receiver Wireless Image Sender 8 Channels

Description:

DS-A25 wireless video transmission equipment is an excellent all aspects of performance are more varieties, and its large power margin, more suitable for complex physical environment. The use of 0dB (Original small antenna) in full to the antenna, the open area to ensure the transmission 2000-4000m or so.if it uses for UAV, The transmission range can reach about 10km from air to ground. And transmitter technology is superb and the special metal is more conducive to heat, more suitable for long hours of work. Signal input with common AV interface, it can easily work with camera, VCD, DVD and all other conventional AV interfaces compatible.

It's not only a professional wireless CCTV transmitter and receiver for CCTV security projects but also used in the line of FPV system, UAV, RC airplanes/helicopters, Video and Data signals at the same time in cars of Unmanned Equipment.

Features:

Wireless transmission: no need to set up communications cable
Image, audio sync, color black and white compatible
Small size, light weight, easy to carry, good installation
Responsive, timely, send and receive real-time transmission
Using FM mode, anti-interference ability, good image quality
Highly integrated, stable and reliable transmission distance
DC power supply, easy to use.
Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.

Specification:

Voltage	DC 12V
Current	600mA
Frequency	1.2G/1.3G
Number of channels	8 Channels
Transmit Power	2500mW
Video Output	1 Vp-p(FM)
Audio Output	1 Vp-p(FM)
Audio Carrier Ware	5.5M 6.0M
Distance (Open environment)	2000m-4000m on ground; 10km from drones
Overall Configuration	Transmitter, receiver, antenna, video cable
Temperature	-10°C~+50°C
Transmitter Weight	104g
Receiver Weight	120g
Dimensions (L * W * H)	Transmitter:935220mm. Receiver:1168021mm
Box size (L * W * H)	24516065mm

Note: we do not provide power adaptor, please use DC 12V, 3A power adaptor.

Installing:

A. The line has 5 plugs for connecting transmitter, camera and power supply
One of the line's points connecting to transmitter, another has 4 plugs (red, yellow, white, black)
Red plug connect DC 12V/1000mA, can also connect battery
White and yellow plug connect to camera's audio and video apart
And black one connects camera's power input jack

B. Push the control button, can change the channel of receiver
Meanwhile, push it and last several seconds, can close the digital play and turn into saving power model
Then push it again, can replay
The function can be able to lock channel, so as to avoid mistaking operation

C. Set the same channel with transmitter and receiver

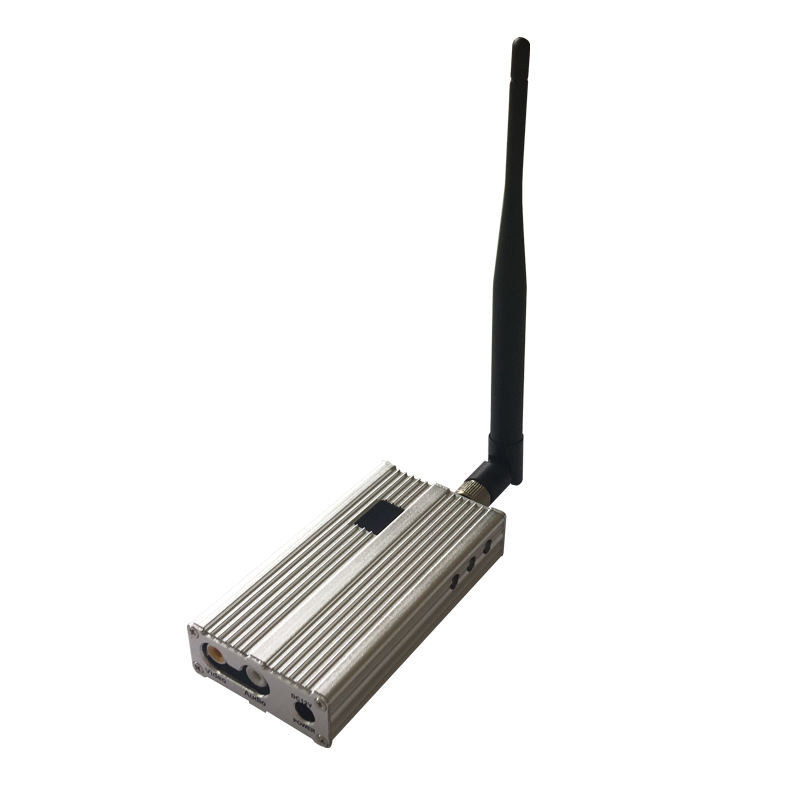

1.2Ghz 2500mW Mini FPV Transmitter and Receiver Wireless Image Sender 8 Channels Images
